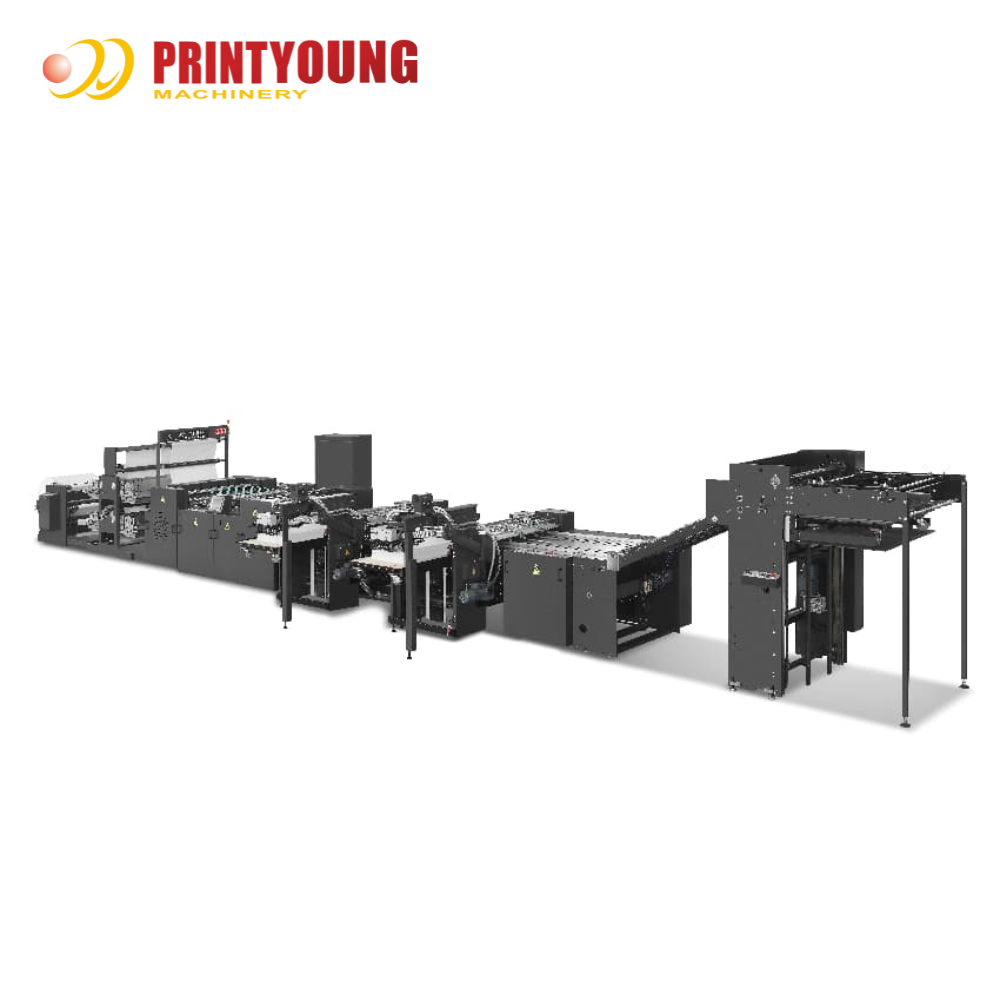

Name: PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-1020AFG
Price: 100000 USD
Availability: InStock

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

기본 정보

원래 장소:	중국
브랜드 이름:	PRINTYOUNG
인증:	CE
모델 번호:	PRY-1020AFG

최소 주문 수량:	1세트
가격:	USD 100000 Set
포장 세부 사항:	장거리 도로 운송 및 다양한 기상 조건에 적합한 방습 및 충격 방지 포장을 채택합니다. 유지보수 및 작동 매뉴얼 전체 세트가 포함되어 있습니다.
배달 시간:	근무일 기준 30일
지불 조건:	신용장, 전신환
공급 능력:	달 당 30 세트

지금 연락

롤의 최대 직경:

1300 mm

용지의 너비:

680 ~ 1020mm

적용 가능한 용지 무게:

50 ~ 130g/m²

반복 인쇄 길이:

300 ~ 680mm

최대 인쇄 넓이:

1020 밀리미터

최대 인쇄 속도:

300개 Ｍ / 분

발행할 수 있는 최대 사본 수:

분당 55개 복사

슬리팅 사양:

300 ~ 680mm

계층화된 페이지:

5~50페이지

표지 무게:

60~300g

강조하다:

Automatic double feeder flexo printing machine

High speed 2-color in-line flexo printer

300 M/min print speed flexo machine

PRY-1020AFG Double Feeder Flexo Printing Machine

Features

1.This machine employs advanced technologies including microcomputer control,

photoelectric tracking,pneumatic-liquid linkage,touchscreen human-machine interface operation,and ink-based flexographic printing.The production line features a roller paper unwinding and flattening process,double-sided dual-color flexible printing,horizontal sheet cutting,multi-page layering,vertical cutting,and platform-based paper stacking,making it an ideal mechanical solution for coil-based printing of inner core pages.

2.This operation can be performed by a single captain.
3.constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of paper sets (digital program control)
Two sets of suction and delivery Feeders
A set of high-income part sets
A set of electrical control system

Technical Parameters

The Maximum Diameter of the Roll	1300 mm
The Width of the Paper	680 ~ 1020 mm
Applicable Paper Weight	50 ~ 130 g/m²
Repeat Print Length	300 ~ 680 mm
Maximum Printing Width	1020 mm
Maximum Printing Speed	300 m/min
The Maximum Number of Copies to be Issued	55 copies per minute
Slitting Specifications	300 ~ 680 mm
Layered Pages	5 ~ 50 pages
Cover Paper Weight	60 ~ 300 g

Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm

5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

The pressure roller is a rubber roller

The traction rollers are clamped with cylinders

3.Slitting accuracy Cutting length tolerances +/-1mm<1000mm Slope tolerance +/-1mm/1000mm

4.Main motor
The main motor is a 15kw AC motor installed in the slitting component

Page Count

1.Count
Count range: 10-100 pages (5-50 sheets fold)
2.Clamp delivery
2 sets of clamping units
Clamp feeding drive utilizes cam curve mechanical drive
Clamping control utilizes cam curve mechanical control
3.Transportation method
First, use a flat belt for continuous conveying,and then use a synchronous belt for intermittent conveying

Cover

1.Adopt the Tongye SF1040 conveyor head
2.After single sheet conveying,click on the intermittent conveying page

High Yield Paper Components

Adopt belt drive to climb and collect vibration
