| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | PRINTYOUNG |
| 인증: | CE |
| 모델 번호: | PRY-200X , PRY-300X |
| 최소 주문 수량: | 1세트 |
| 가격: | USD 16800 ~ 21800 Set |
| 배달 시간: | 근무일 기준 30일 |
| 지불 조건: | 신용장, 전신환 |
| 공급 능력: | 달 당 30 세트 |
| 모델: | PRY-200X , PRY-300X | 이름: | 200/300톤 퍼즐커터(무브업형) |
|---|---|---|---|
| 기계 크기: | 1300*1300*1750mm, 1700*1600*2000mm | 다이커팅 테이블 크기: | 540*680mm, 800*900mm |
| 작업 바닥 높이: | 800mm, 1300mm | 모터 파워: | 5.5kw AC 380V 3상 50Hz, 11kw AC 380V 3상 50Hz |
| 기계의 무게: | 약 2800kg, 6500kg | 탱크 용량: | 약 200L, 350L |
|
Name
|

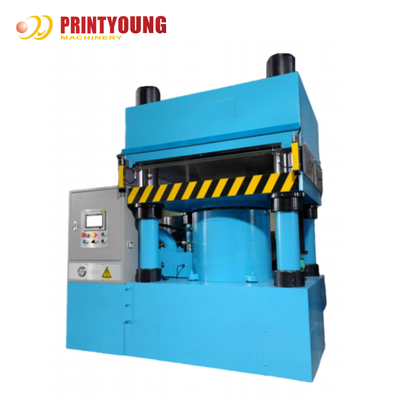

200 ton puzzle cutter (move up type)
|
300 ton puzzle cutter (move up type) |
|
Model
|
PRY-200X
|
PRY-300X |
|
Machine Size
|
1300 * 1300 * 1750 mm
|
1700 * 1600 * 2000 mm |
|
Die-cutting Table Size
|
540 * 680 mm
|
800 * 900 mm |
|
Height of Operating Floor
|
800 mm
|
13800 mm |
|
Motor Power
Power Supply |
5.5kw AC 380V 3PH 50Hz
4 square live line * 3 , 2.5 square zero line * 1,1.5 square ground line *1
|
11kw AC 380V 3PH 50Hz
4 square live wire * 3 , 4 square zero wire * 1,1.5 square two-color wire * 1
|
|
Weight of Machine
|
about 2800 kg
|
about 6500 kg |
|
Tank Capacity
|
about 200L
|
about 350L |
|
Function |
die-cut puzzles , cardboard , games
cards , wood , MDF , 3D , PVC , plastic
|
die-cut puzzles , cardboard , games
cards , wood , MDF , 3D , PVC , plastic
|
|
Maximum Number
of Cutting Pieces
|
maximum 500 pieces of die-cutting (max. 1.9mm)2-300 pieces cut with one knife
|
1000pcs need to be divided into horizontal and vertical die cutting twice (1.6 -2.0mm max)
|
|
Cutable Thickness of Paper Puzzles(General Range)
|
0.5 ~ 2.0 mm (specific by the production mold,product material decision)
|
Thickness: 2mm, 3mm - 6mm - MDF, plastic, etc. |
