홈 제품 소개페이퍼 처리 기계류PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width

PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width

PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width
기본 정보
원래 장소: 중국
브랜드 이름: PRINTYOUNG
인증: CE
모델 번호: SZJ-DL
최소 주문 수량: 1세트
가격: USD 13800 Set
배달 시간: 근무일 기준 30일
지불 조건: 신용장, 전신환
공급 능력: 달 당 30 세트
지금 연락
논문 두께 범위: 22 ~ 230g/m² 최대. 용지 크기: 700*1100mm
최소 용지 크기: 100*150mm 맥스. 논문 적층 높이: 300mm
테이블 크기 수집: 1200*1300mm 테이블 높이 수집: 760 mm
기계 중량: 260kg 소비 된 전력: 900 Ｗ

PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 0

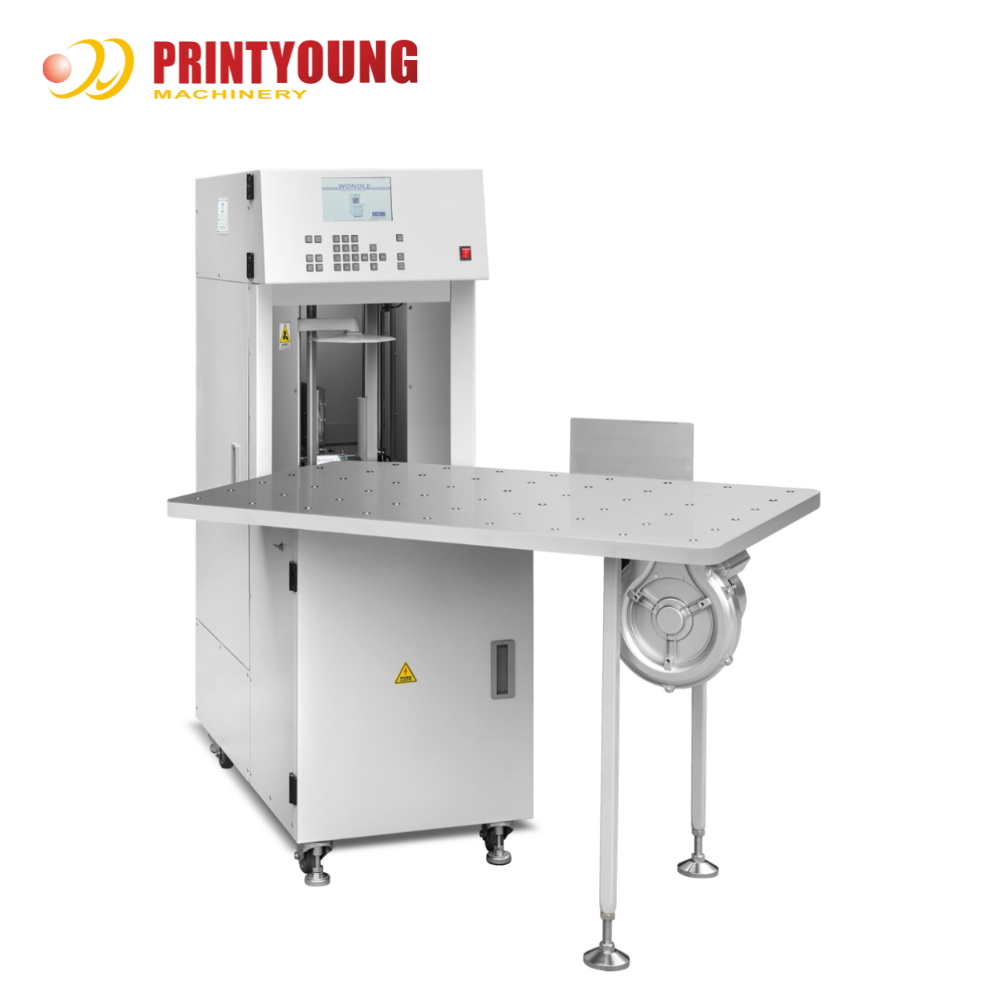

SZJ-DL Thick Paper Counting Machine
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 1
Features
1.Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function.
2.ARM architecture processor:The Advanced RISC Machine, formerly known as the Acorn RISC Machine,is a 32-bit RISC processor architecture.
(1)Compared with the traditional single-chip 40MHz,the processor of the paper machine uses ARM 9 processor faster,with a frequency of 400MHz and a 5-stage pipeline,the comprehensive speed is about 6 to 10 times that of the single-chip.
(2)Compared to Intel CPUs,ARM architecture processors use RISC simplified instruction sets,with low chip power consumption and no need for fan cooling.
3.Any kind and any thickness of paper within the parameter range can be precise and high-speed counting.Special paper depending on the actual situation.
4.The paper counting machine is rich in features to meet the needs of different users,in addition to the standard paper counting mode,there is the random paper label insert function,which can nark for different quantity of paper.It can edit and save 99 program groups,each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
5.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes,or the machine itself abnormal operating conditions.
6.It has a paper label fast changing structure.
7.Stainless steel table with large number of air cushion structure paper easy and convenient.
Technical Parameters
Paper Thickness Range
22 ~ 230 g/m² (carbon paper,offset printing paper,coated paper,etc.)
Max. Paper Size
700 * 1100 mm
Min. Paper Size
100 * 150 mm
Max. Paper Stacking Height
300 mm
Power Supply/Voltage
AC 220 ± 10V , 50Hz
Motor
0.4 kw
Collecting Table Size
1200 * 1300 mm
Collecting Table Height
760 mm
Machine Size
1700 * 1300 * 1500 mm
Machine Weight
260 kg
Label Size for Paper in Pile
100 * 6 mm
Consumed Power
900 W
Configuration
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 2

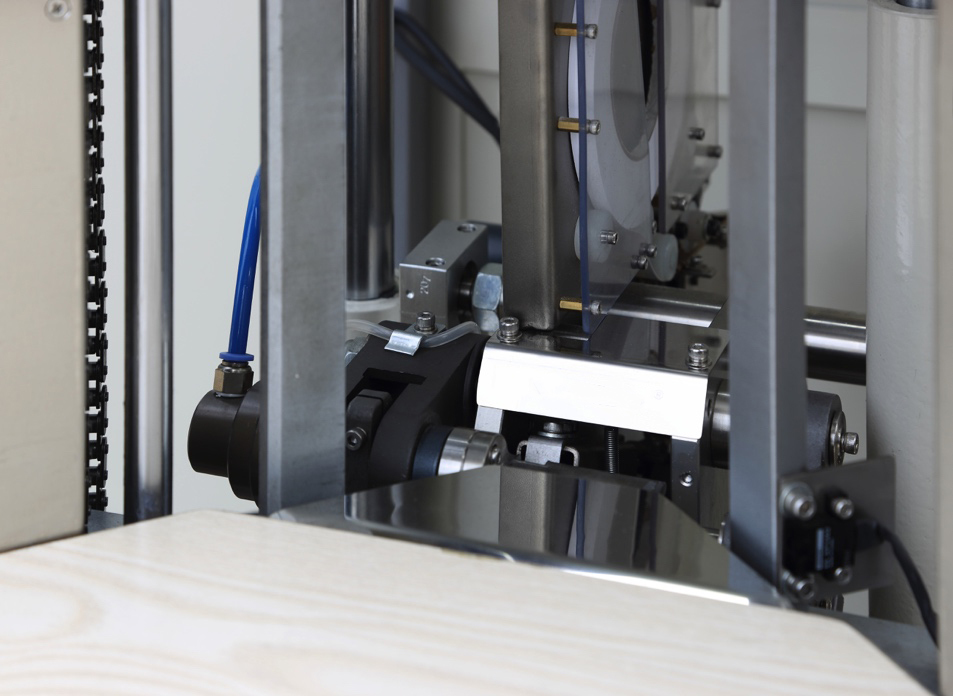

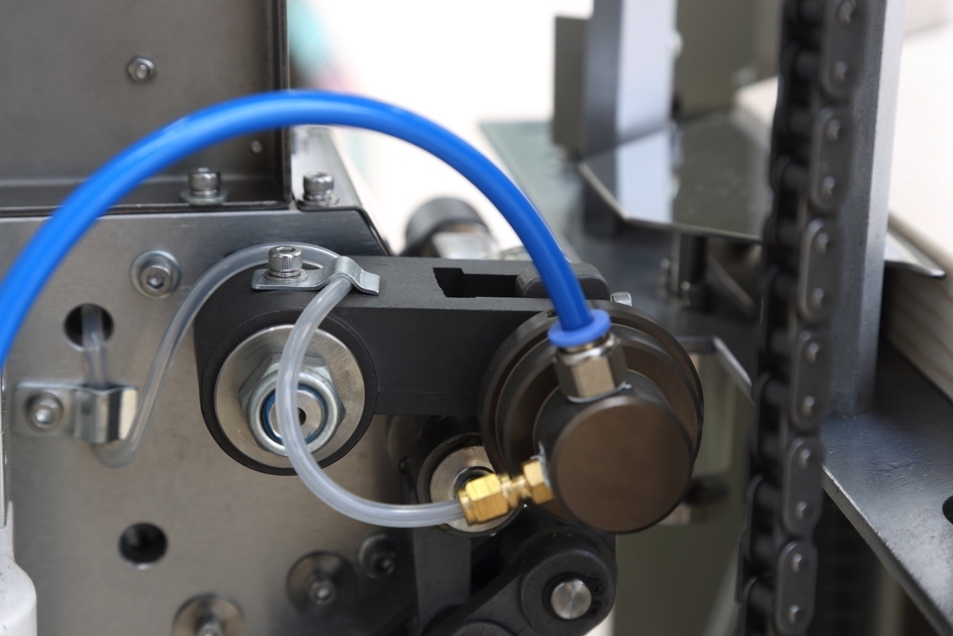

Front structure of the label cutting unit                             Side structure of the paper sucking unit
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 3

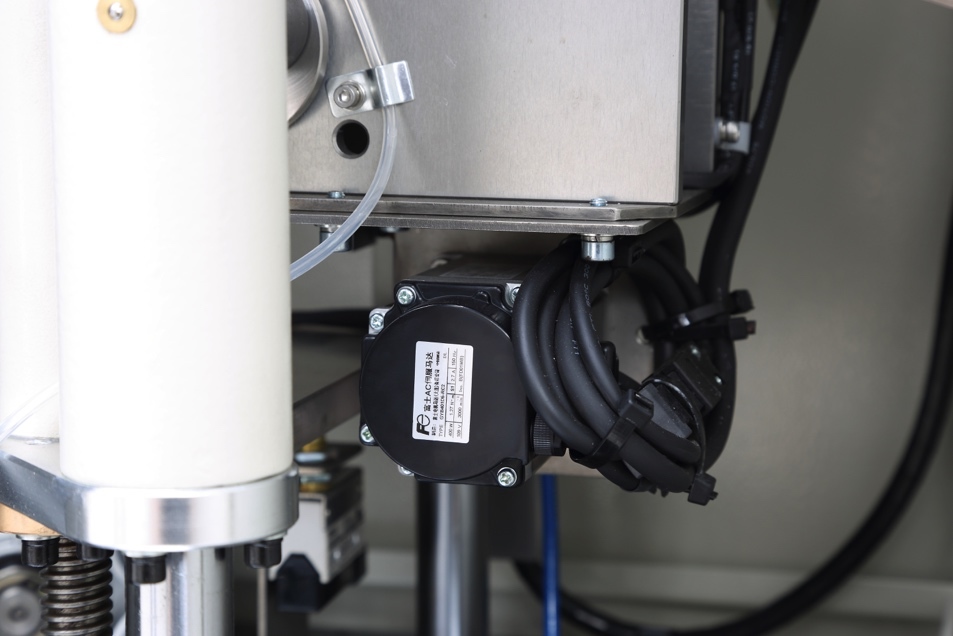

Side view of the Japan Fuji motor unit                                                                 Using Omron limit sensor
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 4
Using Japanese original NSK bearing                                      Japan Orion vacuum pump (optional)
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 5
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 6
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 7
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 8
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 9
PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width 10
