홈 제품 소개페이퍼 처리 기계류TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity

TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity

TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity
기본 정보
원래 장소: 중국
브랜드 이름: PRINTYOUNG
인증: CE
모델 번호: TC-1080A
최소 주문 수량: 1세트
가격: USD 43000 Set
포장 세부 사항: 장거리 도로 운송 및 다양한 기상 조건에 적합한 방습 및 충격 방지 포장을 채택합니다. 유지보수 및 작동 매뉴얼 전체 세트가 포함되어 있습니다.
배달 시간: 40일
지불 조건: 신용장, 전신환
공급 능력: 달 당 30 세트
지금 연락
골판지 무게: 200 ~ 1000 g/m² 시간당 출력: 6000개 부분
최대 크기 카드보드: 650*1080mm 미니 카드 크기: 190*150mm
<i>Max.</i> <b>최대.</b> <i>window size</i> <b>창 크기</b>: 380*400mm <i>Min.</i> <b>최소</b> <i>window size</i> <b>창 크기</b>: 50*60mm
정확성: ± 0.5mm 필름 두께: 0.10~0.25mm
연결로드: 9 Kw 무게: 3800 KG

TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 0

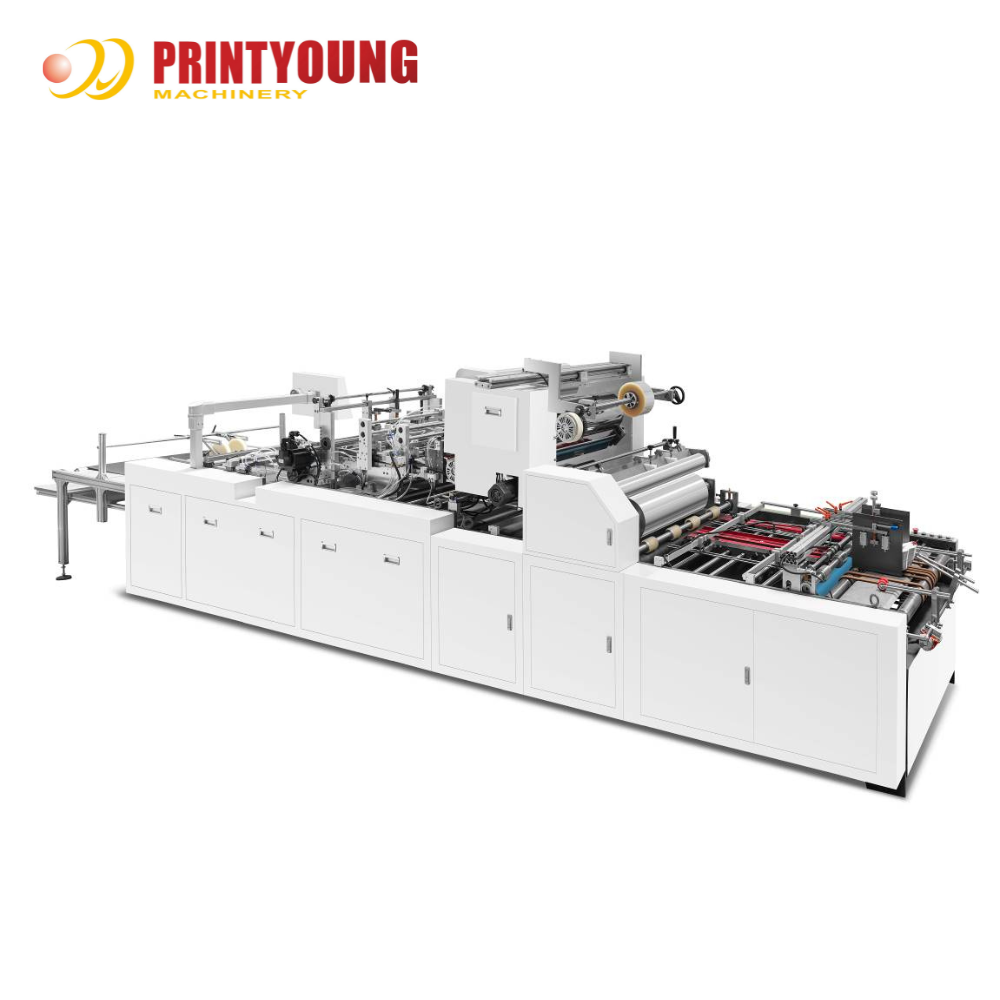

TC-1080A Automatic Window Patching Machine
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 1
Features
Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 17000 pieces for one hour.It can produce tissue boxes,gift boxes,toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
TC-1080A Automatic Window Patching Machine
Model
TC-1080A
Cardboard Weight
200 ~ 1000 g/m²
Output per Hour
6000 pieces
Size Range of Cardboard
Min. 190 * 150 mm Max. 650 * 1080 mm
Size Range of Window
Min. 50 * 60 mm Max. 380 * 400 mm
Accuracy
± 0.5 mm
Film Thickness
0.10 ~ 0.25 mm
Connected Load
9 kw
Weight
3800 kg
Dimensions
7000 * 1500 * 1600 mm
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 2TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 3
Configuration
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 4TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 5TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 6

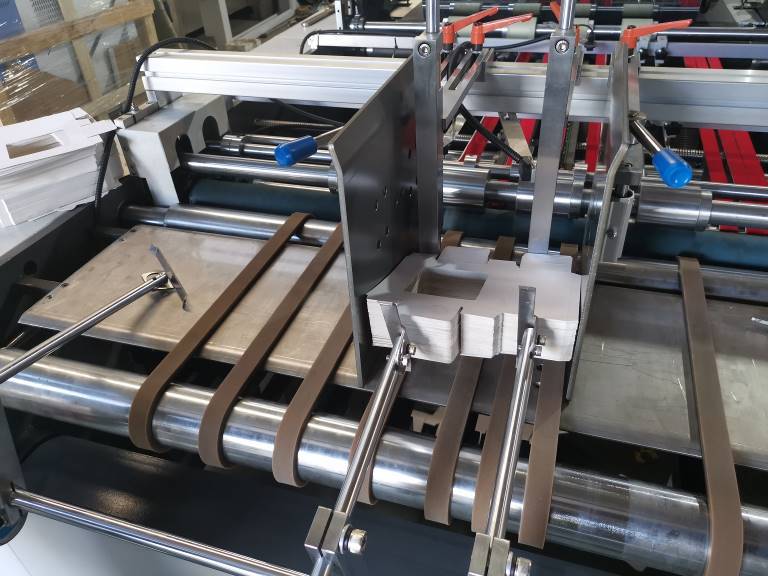

The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.

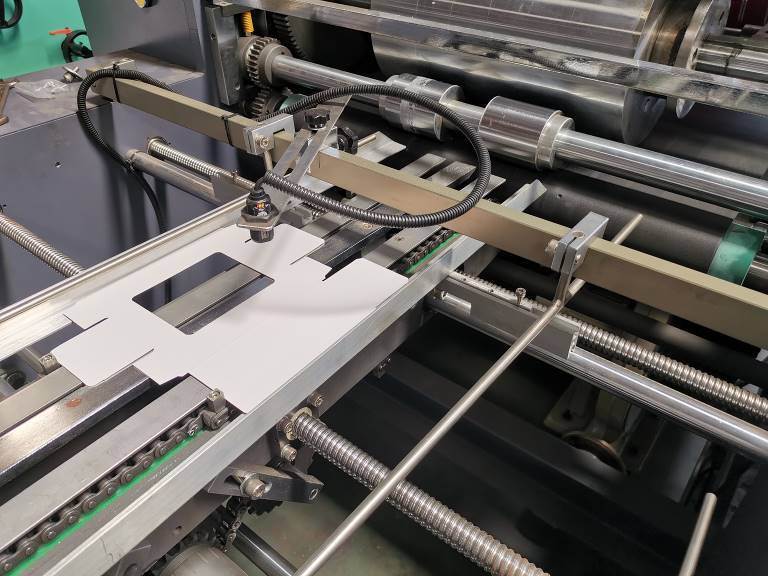

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.

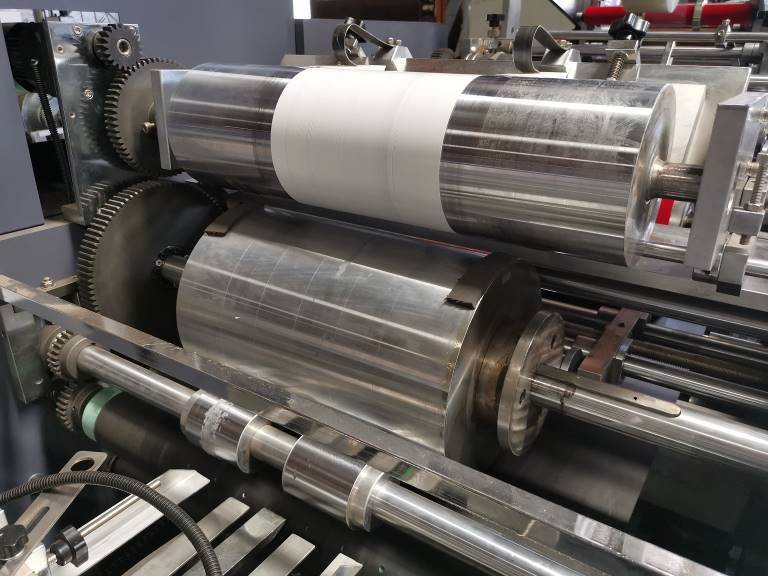

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 7TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 8TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 9TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 10
Film cutting part adopt our patented technology and design.The film length is controlled by servo motor in PLC.The place of paper is controlled by cylinder.Because of this set of design,the accuracy is ±0.5mm.There are letter embossing function,heating roller section function,print register camera sensor function for option.
Applications
Punch & crease window patching machine is widely used for patching the window on the liquor box,gift box,cosmetic box,toy box and so on.It has punching and creasing function, special for corner window.It is the best machine for patching corner window.
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 11TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 12
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 13
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 14
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 15
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 16
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 17
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 18
TC-1080A Fully Automatic Paper Box Window Patching Machine with Motor & Engine 380V 100 Pcs/Min Capacity 19
